Single Action Radiused Spring Hinges are designed to automatically close doors after opening,the radiused corners fit doors with rounded edges and are ideal for CNC-machined installations, ensuring quick and precise manufacturing, providing a convenient and secure solution for residential, sold in packs of 3
KEY FEATURES:
- Finish: electro brassed, polished chrome & satin chrome

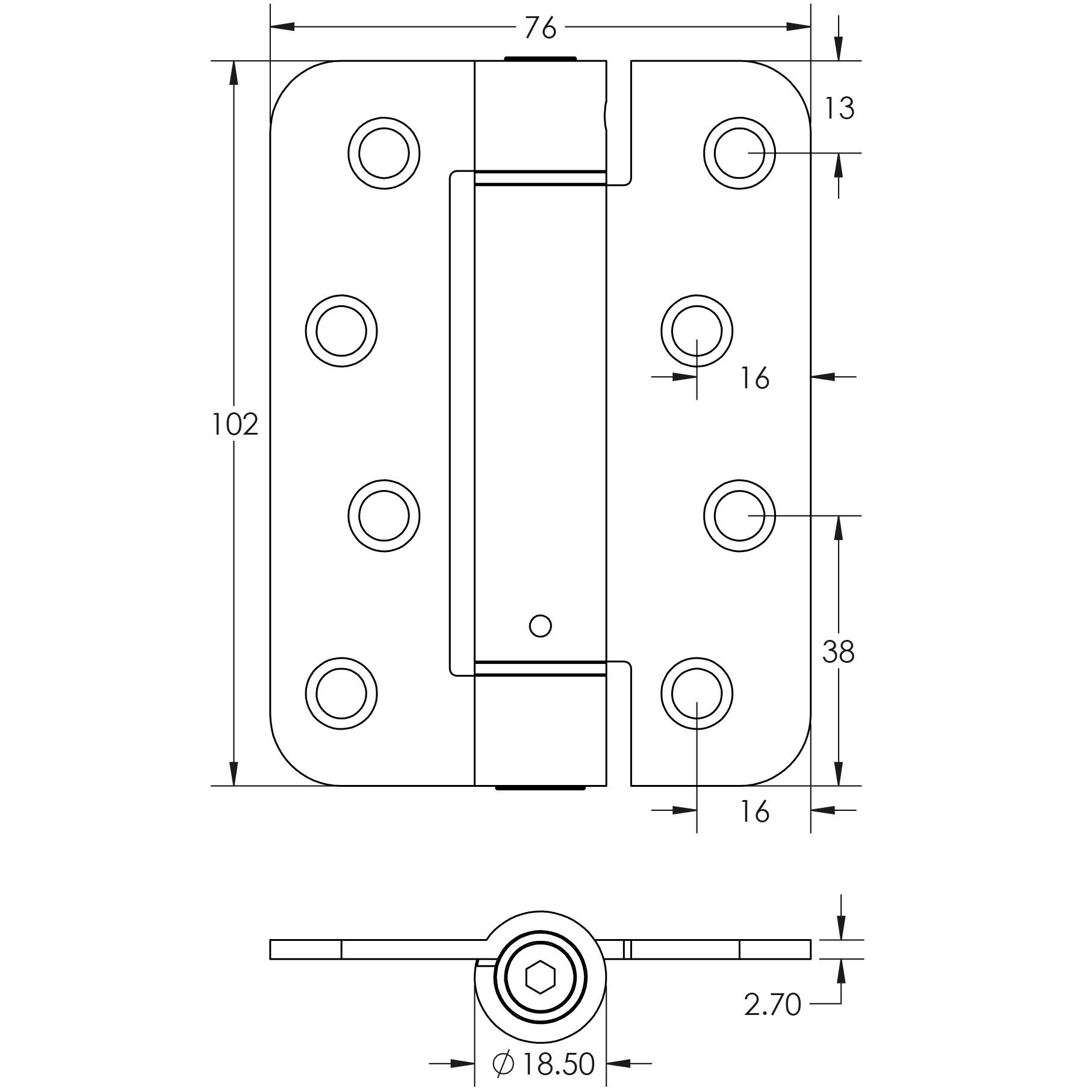

- Size: With dimensions of 102x76x2mm,
- Automatic Closing: Built-in spring mechanism closes the door automatically
- Adjustable Tension: Allows for easy adjustment of the closing force to match door weight and usage.
- Fittings Included: Comes complete 24 x wood screws (Thread Diameter: 4mm, Thread Length: 25mm), 6 pins & 1 x Allen Key
- Carrying Weight: Up to 40kg with 3 hinges
- Usage: Ideal for residential & internal use
We strongly recommend requesting a sample before committing to any cutting and drilling.
| Material | Steel |
|---|---|
| Range | Jedo |
| Internal/External | Internal |
| Fire Rating | 30 |
| Size | 102 x 76 x 2.7mm |
