The Three One Six Diamond Knurled Lever on Rose offers a blend of style and durability for residential and commercial spaces. Crafted from grade 316 stainless steel, these lever handles feature a diamond knurled texture and a sleek round rose base, perfect for modern interiors.
KEY FEATURES:
- Material: 316g Stainless Steel
- Rose: Sprung Lever
- Finish: Offered in black & gun metal , coated with PVD
- Corrosion Resistance: Rated Grade 5
- Fire Resistance: FD30/60
- Suitable Door Thickness: 35-54mm
- Sold as Singles/Pairs: Pairs
- Additional Hardware: Complemented by a range of turns & releases, escutcheons, locks, latches & hinges
- Care Instructions: Maintain the handle's luster by cleaning with warm soapy water and a soft cloth; no harsh chemicals needed.
- Fittings Included: Comes with everything needed for installation, including one spindle size (110mm), grub screws, back-to-back fixings, and an Allen key.
- Use: Designed for internal & external environments for residential & commercial settings
STANDARDS & CERTIFICATIONS

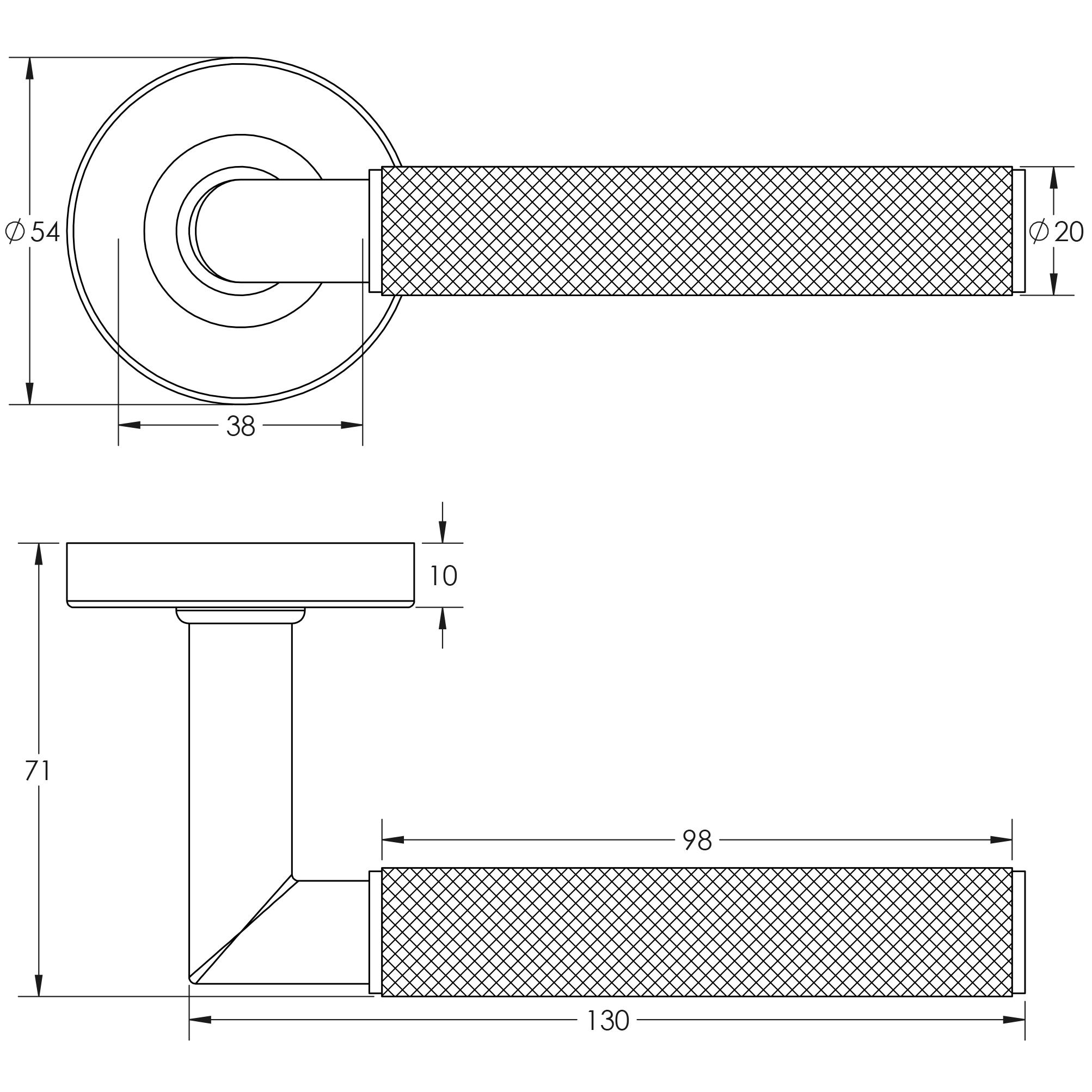

| Fixings Included | Yes |
|---|---|
| Bar Diameter | 20mm |
| Rose Centres | 38mm |
| Projection | 51mm |
| Grip Length | 98mm |
| Avaliable Finishes | 2 |
| Sprung | Yes |
| Handle Length | 130mm |
| Overall Projection | 71mm |
| Rose Projection | 10mm |
| Rose Diameter | 53.50mm |
| Residential/Commerical | Residential/Commercial |
| Internal/External | Internal/External |
| Material Grade | Grade 316 |
| Sprung Rose | Sprung |
| Material | Stainless Steel |
| Fire Rating | 30/60 |
