The Piccadilly lever handle on plate is a luxurious and durable addition to any modern home. The handle features a knurled design which provides superior grip and a strong sturdy feeling when operated, making it a perfect blend of style, durability, and functionality. It is available in five high-quality finishes including antique brass, dark bronze, polished nickel, satin brass and satin nickel, allowing you to choose the perfect match for your decor. With 13 different profiles to choose from, it can be fully customised to your preferences. The lever handle on plate design offers a sleek and modern look to your doors while also providing added security. The knurled handle is trending in the industry, making it a popular and fashionable choice for any home. Upgrade your home's look and feel with the Piccadilly lever handle on plate..
STANDARDS & CERTIFICATIONS

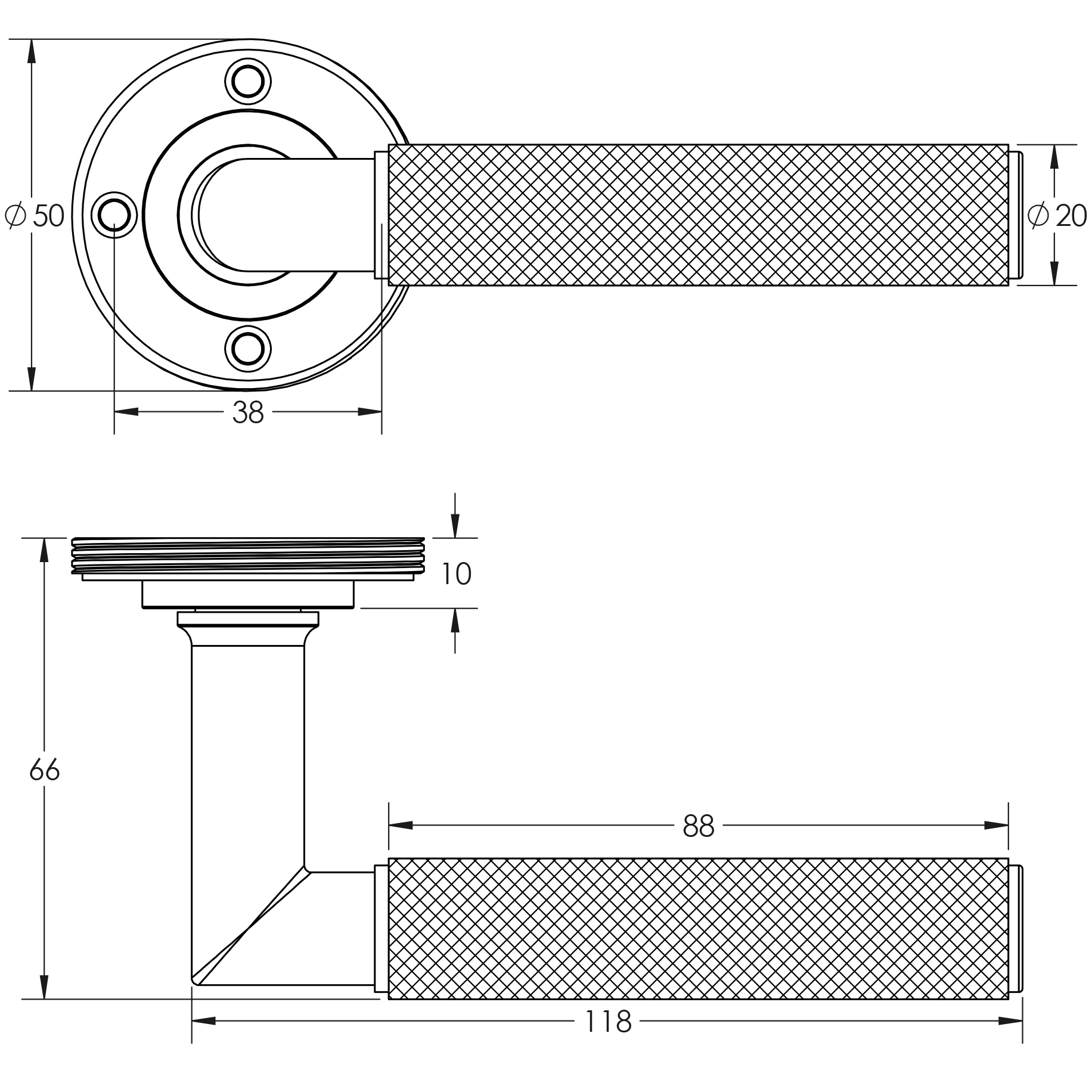

TECHNICAL DRAWING
| Material | Solid Brass |
|---|---|
| Range | Burlington |
| Internal/External | Internal |
| Residential/Commerical | Residential/Commercial |
| Overall Projection | 65.50mm |
| Handle Length | 118mm |
| Avaliable Finishes | 6 |
| Projection | 45.50mm |
| Bar Diameter | 20mm |
| Backplate Dimension | 200mm x 55mm |
| Backplate Projection | 10mm |
| Fire Rating | 30/60 |
